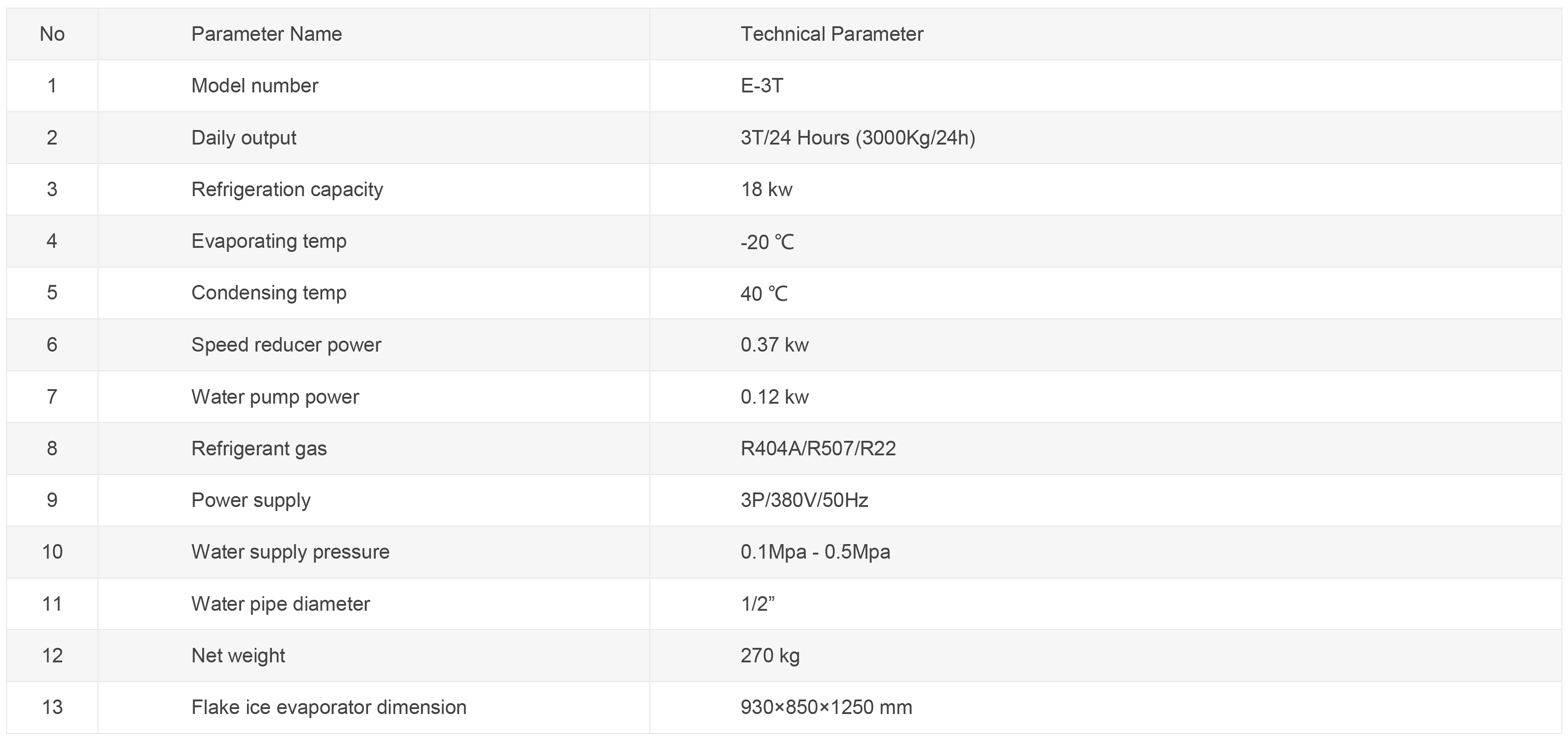

3Ton Flake Ice Evaporator                  Model: E-3T

Flake Ice Temp: -5

Flake Ice Thickness: 1.5-2.2mm

Refrigerant: R404A/R22/R507/R717

Power Supply: 3P/380V/50HZ

Standard Condition: Ambient temp 25, Water inlet temp 18

Application Condition: Ambient temp 5-40, Water inlet temp 0-40

Flake ice evaporator features

1. Flake ice evaporator is the core part of flake ice machine and it is a stationary, insulated, double-walled vertical cylinder, with daily production capacity ranging from 500kg/day-50ton/day.

2. Adopted stainless steel and weldless forming ice blade.

3. Excellent heat treatment (annealing) for stress relief, ensure evaporator has no deformation.

4. Chromium coating treatment improves the corrosion resistance for carbon steel evaporator.

5. Scientifically designed spiral refrigerant chamber.

6. High stability and reliability, high cooling efficiency and long life performance (8-10 years).

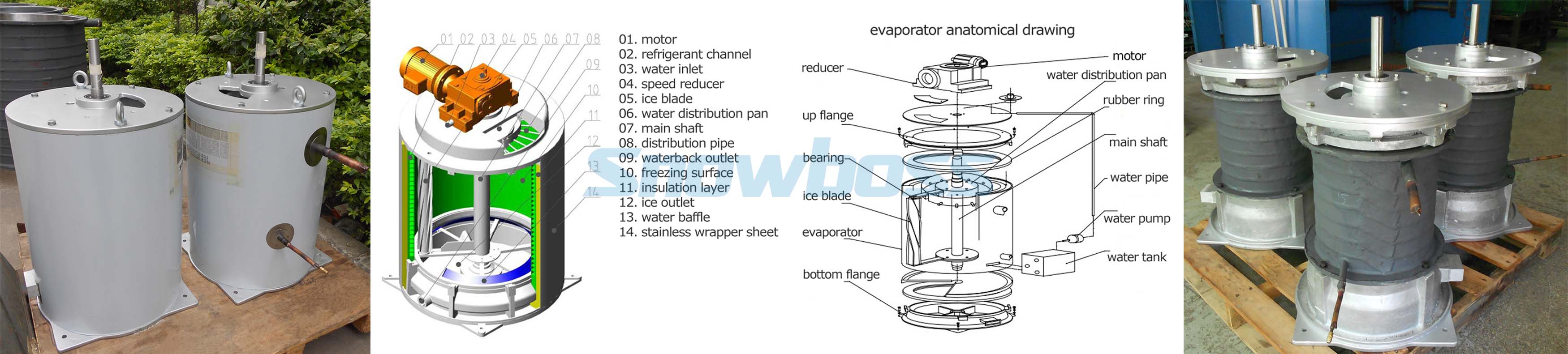

Working principle of flake ice evaporator

We adopt jacketed evaporator for our flake ice machines. In the jacketed evaporator, the refrigerant evaporates and ice forms on the inner wall. Water is first pumped up into a water distributor at the top of the evaporator. Then, it is distributed to the inner wall of evaporator where it is frozen to ice. The ice will be scaled off by an rotating ice blade and collected for preservation. The un-frozen water will be recycled.
